- Aplanatic Optical Design
- High Numerical Aperture for Small Spot Sizes
- Designs for 800 and 1030nm with Focusing Depth Up to 4mm

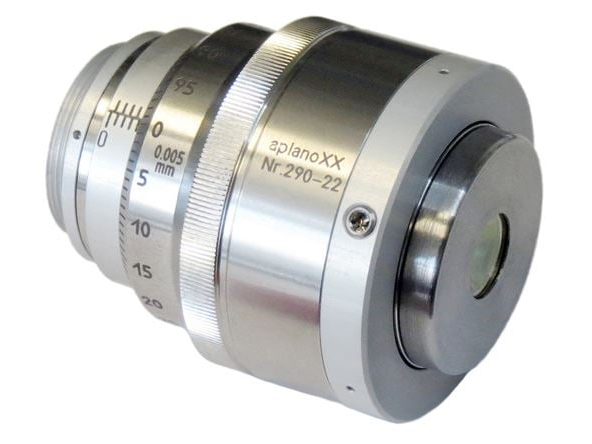

AdlOptica aplanoXX Aplan Objectives compensate for spherical aberration and coma when focusing into glass, sapphire, silicon carbide, silicon, PMMA, and other transparent materials at depths up to 4mm. These objectives are designed to be used with ultrafast solid-state and fiber lasers and are optimized for 800nm (Ti:sapphire) and 1030nm (Yb:doped). Featuring C-Mount threading and an optical design insensitive to misalignment, these objectives are easy to integrate into laser systems. AdlOptica aplanoXX Aplan Objectives are ideal for micromachining glass, 3D nanofabrication, waveguide recording, and selective laser etching. A collar on the objective allows for manual adjustment of focus and a replaceable front window protects from debris during materials processing.
Common Specifications
| Field of View (°): | ±0.3 |
| Clear Aperture CA (mm): | 20 |
| Diameter (mm): | 44.00 |
| Length (mm): | 54.10 |
| Focal Length FL (mm): | 12.50 |
| Numerical Aperture NA: | 0.80 |
| Working Distance (mm): | 2.5 (1.6 with Protective Window) |
| Damage Threshold, By Design: | 100 mJ @ 5ns 300 μJ @ 1ps |
| Focusing Depth (mm): | 0 – 4 |
| Beam Diameter (mm): | 20 (maximum) |
| Damage Threshold, Pulsed: | 100 mJ @ 5ns 300 μJ @ 1ps |
| Mount: | C-Mount |
