- Designed for Use with Laser Bars
- Can be Used With Fast Axis Collimator
- Low Curvature Deviation for Increased Collimation

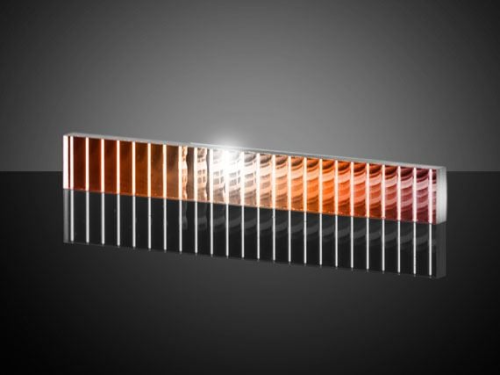

Slow Axis Collimators consist of a monolithic array of cylindrical lenses designed to collimate the individual emitters of a laser bar. Slow Axis Collimators feature greater than 99% transmission across the designated spectral range to guarantee high performance with minimal loss of light. To meet an application’s unique collimation needs, Slow Axis Collimators can also be used with Fast Axis Collimators for custom collimation combinations.
Common Specifications
| Clear Aperture CA (mm): | 11.0 x 1.4 |
| Height (mm): | 1.50 |
| Height Tolerance (mm): | 0.05 |
| Length (mm): | 12.00 |
| Length Tolerance (mm): | ±0.05 |
| Substrate: | S-TIH53 |
| Coating: | BBAR (790-990nm) |
| Wavelength Range (nm): | 790 – 990 |
| Coating Specification: | Ravg <1.0% @ 790 – 990nm |
| Pitch (μm): | 500.00 |
| Surface Accuracy: | λ/4 |
| Transmission (%): | >99 |
For more detailed information, please contact us at any time! Contact Us
