The EHE is the workhorse of the E-Series metering pumps. EHE Series pumps have outputs up to 20 GPH (75 l/h) and pressure capabilities to 150 PSI (10 bar). Combining the EHE performance with a turndown ratio of 1800:1 yields one of the most versatile pumps in the water treatment industry today. Superior mechanical design and quality manufacturing merge to create a pump better than the sum of its parts. The versatile control features enable the EHE to be integrated into virtually any chemical feed application. The 360 strokeper-minute operation results in high resolution chemical feed and long service life. EHE pumps prime in seconds and hold prime reliably.

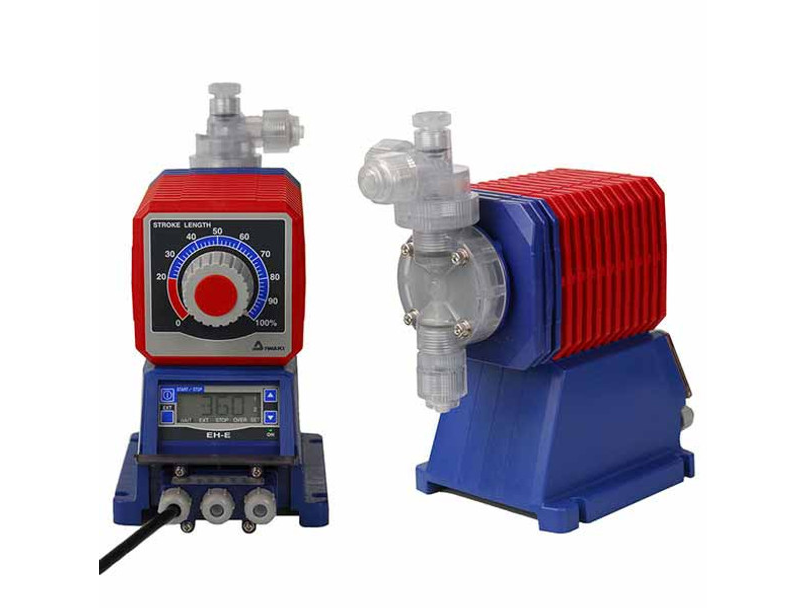

Walchem EHE Series Metering Pump, solenoid pump, microprocessor control w/external pulse & MAAV, 12GPH @ 60psig max, PVC head/fittings, PTFE/EPDM diaphragm, CE/HC balls, PCTFE seat, FKM seals, PTFE gasket, 1/2 OD, 115AC 1.8A 48W. Use E46VE-PK parts kit.
- Manufacturer: Walchem
- Connection Size: 1/2 in. O.D.
- Gasket: PTFE
- Max. Pressure: 60 psig
- Product Type: Electronic Metering Pumps
- Pump Head: PVC
- Valve Seat: PCTFE
- Diaphragm Material: PTFE/EPDM
- Max. Capacity: 12.0 GPH
- Product Category: Metering Pumps
Dimension Drawing
