| Suction Port Size | 0.75 in |
|---|---|
| Discharge Port Size | 0.5 in |
| Connection Types | NPT/BSP |
| Maximum Specific Gravity | up to 1.8 |
| Maximum Working Pressure | 100 psi (6.9 bar) |
| Maximum Temperature | 300º F (149º C) |
| @3500 RPM | @2900 RPM | |
|---|---|---|
| Flow Range* | 3 to 39.1 gpm | 0.68 to 7 m3/h |
| Maximum Head | 59.6 ft | 11.7 m |
| Power Range** | 0.25 to 1 hp | 0.1 to 0.21 kW |
| *See Performance tab for individual impeller diameter capability **Smallest to largest impeller on 1.0 s.g. |
||
| Type | Stainless Steel Cantilevered |
|---|---|
| Configuration | Vertical |
| Construction Materials | 316 Stainless Steel |
| O-Ring Materials | FKM, EPDM, or PTFE Encapsulated Silicone |
| Column Lengths | 12 in (30 cm) |
Applications
- Pharmaceutical
- Waste water & water treatment
- Chemical transfer

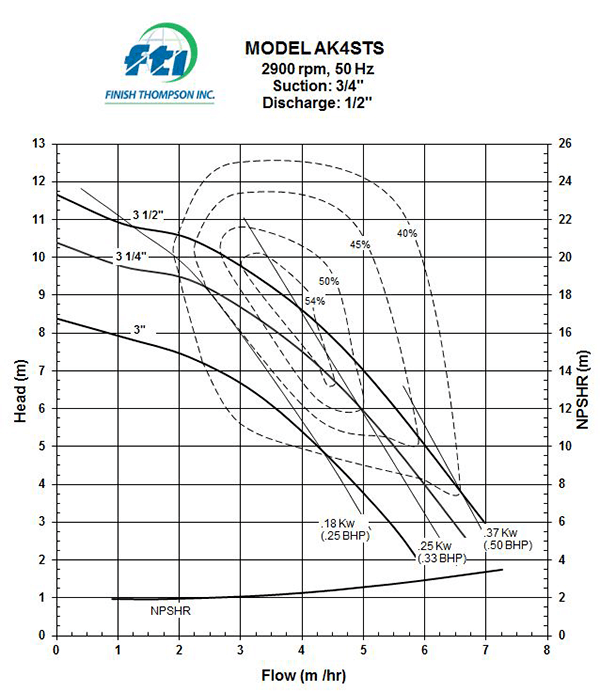

Performance
 |
 |
 |
 |
