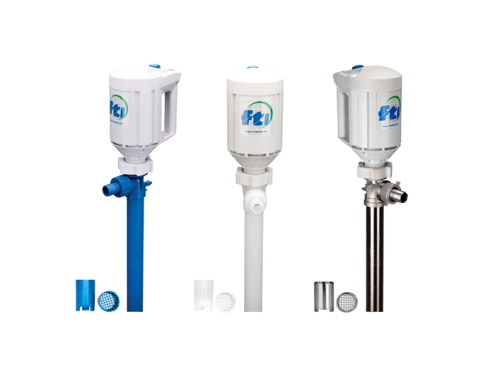

Finish Thompson SF Series Drum/Barrel Pumps – SFVV Drum Pumps

SKU: Category: Finish Thompson Industrial Pumps

Contact us

Call us Email Facebook Instagram Messenger

Dual impeller options provides either high flow or high head with 40mm tube diameter for smaller bung openings.

Featuring multiple material options and connections, the SF Series is designed for container-to-container transfer of acids, corrosives, and chemicals.

Features:

  • Pure PVDF tube
  • Interchangeable with motors
  • Integral strainer on high-flow versions
  • Up to 1200 cP
  • Built-in hose and cord clips

Applications

  • Acids
  • Bases
  • Water treatment chemicals
  • Cleaners
  • Plating solutions
  • Kidney dialysis solutions
  • DEF/AdBlue (diesel exhaust fluid)

Specifications

Available Lengths 27, 40, 48, 54, 60, 72 in (69, 102, 122, 137, 152, 183 cm)
Tube Diameter 1.6 in (4.0 cm)
Discharge Size 1 in (2.54 cm)
Discharge Type Hose barb
Hose Size 1 in (2.54 cm)
High Flow Impeller Electric Motor Air Motor
Maximum Flow 37 gpm (140 lpm) 31 gpm (117 lpm)
Maximum Head 50 ft (15 m) 32 ft (10 m)
Maximum Specific Gravity 1.84 2.0
Maximum Viscosity 1000 cP 1200 cP
High Head Impeller Electric Motor Air Motor
Maximum Flow 24 gpm (91 lpm) 20 gpm (76 lpm)
Maximum Head 83 ft (25 m) 62 ft (19 m)
Maximum Specific Gravity 2.0 2.0
Maximum Viscosity 1200 cP 1200 cP
Tube Material Pure PVDF
Shaft Material Alloy 625
O-ring Mateial FKM
Impeller Material ETFE
Maximum Temperature 140º F (60º C)
Minimum Temperature 35º F (1.7º C)
*SFVV54(-H), SFVV60(-H), SFVV72(-H): 115º F (46º C) Maximum Temperature

Finish Thompson SF Series Drum/Barrel Pumps – SFVV Drum Pumps

ODP (Open Drip Proof), Splashproof, IP24 Variable Speed Motors




Model Certifications Requirements Input/Output
(W)		 RPM High Flow/High Head Maximum Viscosity
M3V QPS 115V/50-60Hz 650/400 3,500-10,000 1000 cP/1200 cP
M5V CE 230V/50-60Hz 650/400 3,500-10,000 1000 cP/1200 cP
M5V-US* CE 230V/50-60Hz 650/400 3,500-10,000 1000 cP/1200 cP
M3V-UK CE 115V/50-60Hz 650/400 3,500-10,000 1000 cP/1200 cP

TEFC (Totally Enclosed Fan Cooled) IP55 Motors



Model Certifications Requirements Input/Output
(W)		 RPM High Flow/High Head Maximum Viscosity
M3T QPS 115V/60Hz 1000/680 12,000 800 cP/ 1200 cP
M5T CE 230V/50-60Hz 1000/680 12,000 1000 cP/ 1200 cP
M3TV QPS 115V/60Hz 1000/680 0-12,000 800 cP/ 1200 cP
M5TV CE 230V/50-60Hz 1000/680 0-12,000 1000 cP/ 1200 cP

Explosion Proof Motors



Model Certifications Requirements Input/Output
(W)		 RPM High Flow/High Head Maximum Viscosity
M3XV QPS 115V/60Hz 1000/680 0-12,000 1000 cP/ 1200 cP
M5XV CE 230V/50-60Hz 1000/680 0-12,000 1000 cP/ 1200 cP
M5XV-HT CE 230V/50-60Hz 1000/680 0-12,000 1000 cP/ 1200 cP

Air Motors*

Model Certifications Requirements Input/Output
(W)		 RPM Maximum Viscosity
M6† CE 80-100psi@15-32 cfm 400 300-9,000 1200 cP
