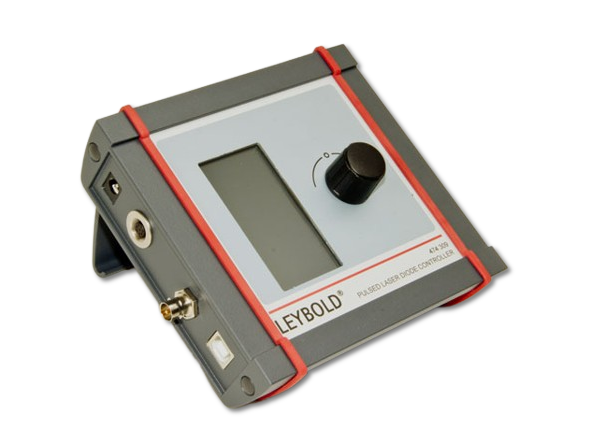

This controller is designed to operate the pulsed laser diode 474 5428. The fully digital operating device provides the charging voltage for the ignition capacitor of the pulsed laser diode as well as the trigger signal to ignite the laser puls. By means of a one knob interaction all parameters can be set and displayed.
- Charging Voltage: 2 … 20 V in steps of 1 V
- Repition rate: 10 … 3000 Hz in steps of 100 Hz
- Pulse width conrol: 4 … 150 ns
- Operating Voltage: 12 V DC
- Inputs: Diode laser connection
- Outputs: Trigger signal as TTL signal via BNC jacket
- Dimensions: 115 mm x 130 mm x 38 mm
