Product information “Double diaphragm pump DMP model 3/8″ plastic”
The double diaphragm pump is suitable for pumping small quantities, in laboratories and for occasional filling operations
- typical applications: chemical circulation and feeding, liquids with solid particles such as paints and varnishes, electroplating liquids, etc.
- integrated silencer up to model size DMP 1″
Features & advantages
- High hydraulic performance
- Maintenance-optimised design and easy installation
- Self-priming (even when dry)
- Reinforced elastomers and thermoplastic diaphragm
- Absolutely oil-free
- blockage-free operation
| Air inlet ( Ø mm): | 6 |
|---|---|
| Air pressure (max. bar): | 8 |
| Air pressure start-up (min. bar): | 2 |
| Centre block (material): | Polypropylene carbon fibre reinforced (PP) |
| Connection: | Gewinde |
| Delivery head (up to max. mWS)*: | 50 |
| Delivery rate (up to max. l/min)*: | 26 |
| Displacement per chamber (in cm³): | 35 |
| Displacement per cycle (in cm³): | 70 |
| Double diaphragm pumps (material): | non – metallic |
| Explosion protection: | No |
| Housing (material): | Polypropylene glass fibre reinforced (PP) |
| Membranes (material): | TPV (EPDM-PP) = EPDM/PP-Compound |
| Pressure connection (inch) inside: | 3/8″ |
| Pumped liquid temperature (max °C): | 60 |
| Seals (material): | EPDM (ethylene-propylene-diene monomer) |
| Size (inch): | 3/8″ |
| Solids (max. ø mm): | 3 |
| Sound pressure level ( in dB(A)): | 72 |
| Suction height dry (up to max. mWS*): | 4 |
| Suction nozzle (inch) inside: | 3/8″ |
| Type: | DMP 3/8″ PPE PP/TPV (EPDM-PP) |
| Valve ball (material): | EPDM (ethylene-propylene-diene monomer) |
| Valve seat (material): | PP (polypropylene) |
| Viscosity (up to max. mPas)*: | 3500 |

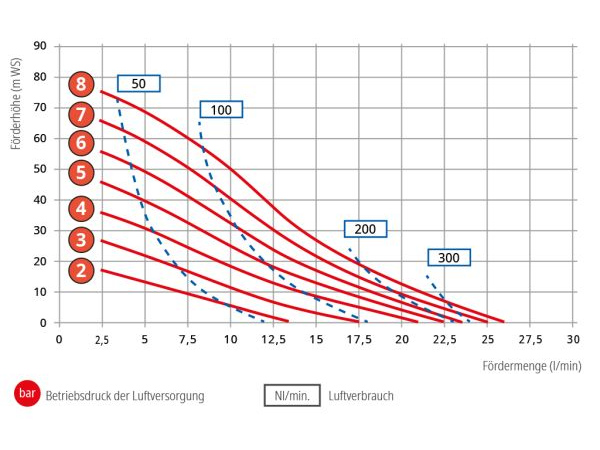

* The maximum flow rate is a value determined by means of a test bench and measured with water at a liquid temperature of approx. 20 °C . The measurement is taken at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.
** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
