Anyone looking for a pump that fulfills the highest requirements for corrosion-resistance can be certain with SCHERZINGER: The series 2050–5050 are especially suitable for application areas that place heavy demands on the material for individual components – for example, the conveyance of aggressive acids.

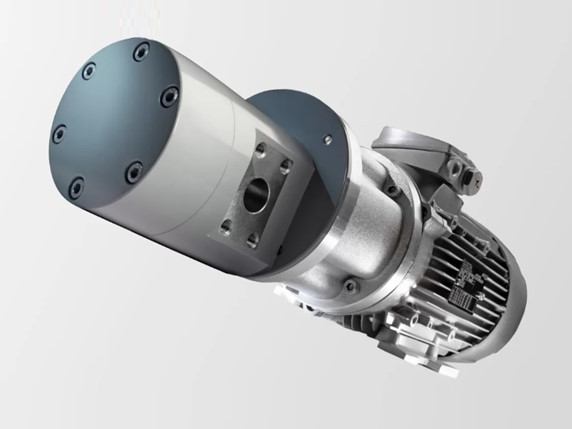

Titanium pumps from SCHERZINGER
– for the highest standards:
 |
 |
 |
Corrosion-resistanceAll components of the pumps are highly corrosion-resistant. |
Combination fortitudeAll pumps in this category can convey chlorine-containing and highly oxidizing acids. |
ReliabilityAll process steps of our development and production are designed for maximum operation safety – for maximum safety in your acid application. |
Titanium pumps
| Size | Geometric conveyed volume [ ml / u ] |
Maximum rotation speed [ 1 / min ] |
Maximum volum flow [ l / min ] |
Maximum differential pressure [ bar ] |
Maximum input pressure [ bar ] |
Viscosity [ mPas ] |
Temperature range [ °C ] |
|---|---|---|---|---|---|---|---|
| 3050 | 0.45 0.7 1.1 * |
4000 | 1.8 2.8 4.4 |
7
30 |
60
90 |
0.5 … 3000
0.5 … 20,000 |
-20 … 70
-40 … 200 |
| 4050 | 2.8 4.5 7.1 * |
3500
3000 |
9.8 15 21 |
7
30 |
60
90 |
0.5 … 5000
0.5 … 20,000 |
-20 … 70
-40 … 200 |
* maximum possible application area with application-specific and constructive adjustments
Possible material combinations
| Casings & shafts | Gear wheels | Slide bearings | Seals |
|---|---|---|---|
| Titanium | PEEK mod. PEEK HT PTFE mod. PPS mod. |
PEEK mod. PTFE mod. PPS mod. SSiC / Cr2O3 SSiC / Al2O3 |
PTFE FKM FFKM EPDM |
