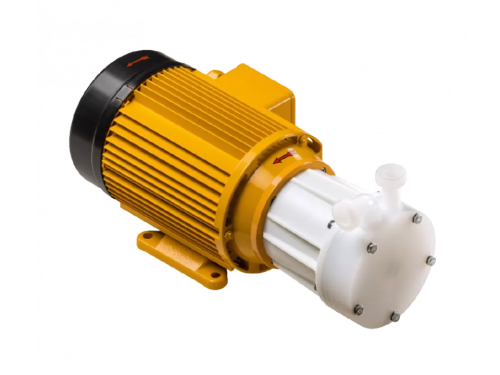

P Series
Thanks to magnetic coupling, these pumps operate contact-free and wear-free. This is ideal for toxic, environmentally hazardous or aggressive media. They are designed for high pressures and can be controlled very precisely.
The P series can pump media up to a temperature of 60 °C. Under the designation P-EX, we also offer an ATEX-certified version for use in ATEX zone 2.
Special features of the P Series
- Very precise pump control due to linear pump curve
- Hermetically sealed and absolutely leak-free (no mechanical seal)
- Particularly suited for toxic, environmentally harmful and corrosive media
- Very suitable for pumping low-boiling liquids
Features
- Hermetically sealed and absolutely leak-free (no mechanical seal)
- Powerful magnetic drive with neodymium magnets
- Practically maintenance-free in normal operation due to extra-large slide bearings
- Runs in partial dry run conditions due to large diameter PTFE slide bearings – design without impeller shaft Features
- All wet parts made of high-quality, corrosion-resistant plastics (PVDF or PP)
- Threaded connections (ISO 228-1) as standard
- Universally applicable, low-noise and compact close-coupled design
- Approved for use in explosive atmospheres ATEX zones 2
- Corrosion-resistant paint finish
- All stainless steel screws in 1.4571 (316Ti)
- FDA-certified materials (PVDF versions)
Fields of applications
Delivery of acids, bases, lye or other corrosive, harmful or toxic liquids in such applications, where even small leakages are not acceptable and a hermetically sealed pump is required. Delivery of highly pure and sensitive liquids, where contamination must absolutely be avoided.
For example in the following applications:
- Plating and surface coating
- Semiconductor technology and solar cell production
- PCB and electronics manufacturing
- Wastewater and fresh water treatment
- Laboratory equipment and medical technology
- Emission controls and gas scrubbers
- Battery production and energy storage
- High-purity applications, demineralized water, ultrapure water
Characteristics
Pump housing / wet end: PVDF, PP
Elastomers: FKM, EPDM, FEP, FFKM
Material of slide bearings: PTFE / Al2O3, SiC / SIC
Operation conditions
- Max. flow rate: up to 4.5 m³/h
- Max. delivery head: up to 45 m
- Liquid temperature: 0 to 60°C (PVDF, PP)
- Ambient temperature: -10 to 40°C, higher temperatures on request
- Pumps can be adapted to high-density liquids (up to 1.3)
Motors
Standard motors (available from stock)
- Three-phase motors: D230 / Y400 V-3ph @ 50 Hz, D265 / Y460 V-3ph @ 60 Hz, IP 55, Ins.-Cl. F, also with PTC
- All motors from 0.75 kW have energy efficiency class IE3
- Single-phase motors (up to 1.1 kW: 230 V-1ph, 50 / 60 Hz, IP 55, Isol.-Kl. F)
- ATEX-certified motors (temperature rating T3)
Special motors (available on request, for example)
- Special voltages and frequencies · ATEX-certified motors (temperature rating T4)
- Three-phase motors with integrated drive / frequency converter
- Four-pole motors with 1450 rpm @ 50 Hz / 1650 rpm @ 60 Hz
- UL- and CSA-certified motors
- Special types of protection, e.g. IP 65
- Special insulation classes, e.g. tropical insulation
- Multi-voltage, e.g. D220–290 / Y380–500 V, 50 Hz; D220–332 / Y380–575 V, 60 Hz
- Direct-current motors (DC or BLDC)
