Pneumatically driven piston pumps 82885 and 83667 for single-line systems

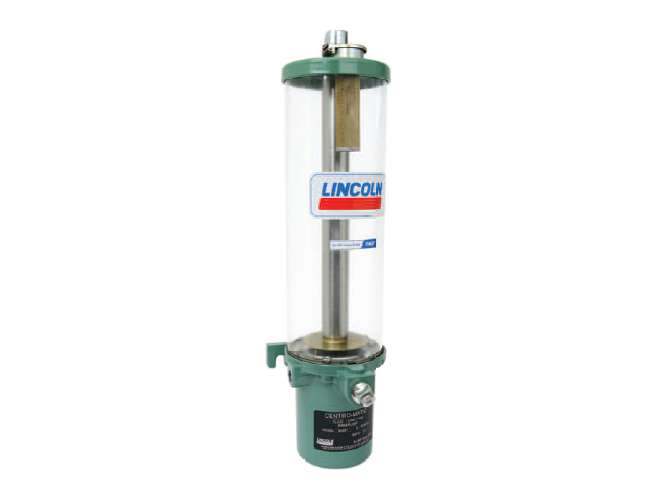

Model 82885 is an air-operated single-stroke oil pump. The pump’s piston is pressurized with compressed air and moved forward, discharging the lubricant in front of it. A spring then returns the piston, and the pressure is released via an integrated (three-way) check/vent valve on the lubricant line. The transparent reservoir is filled via a filler neck with a strainer. The pump unit is suitable for systems with a large number of lubrication points and timed lubrication strokes.

Model 83667 has the same functionality but is equipped with a larger container.

Features and Benefits

• Reliable operation
• Container with filling spout and integrated sieve
• Suitable for lubricant distributors of categories 2, 3 and 4

Applications

• textile machinery
• steelworks
• Packaging systems
• Plastics processing
• Material transport
• Food and beverage industry

Technical data

Single-stroke piston pump for oil
