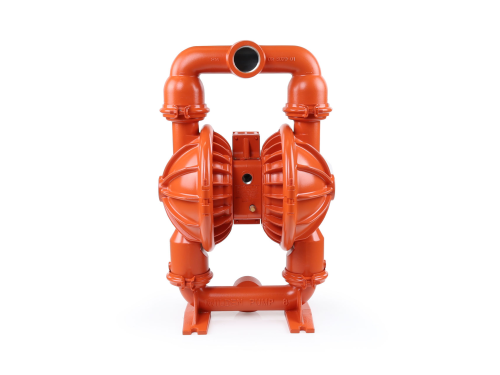

Item: 08-16179-R
Description: XPS8/AZAAA/BLL/BN/BN
|
 |
|
Attributes
| Model: 2 |
Technical Construction: CLAMPED |
Wetted Path Material: ALUMINUM |
Diaphragm Material: Bunalast™ |
| Diaphragm Design: TPE IPD |
Diaphragm Stroke: Full-Stroke |
Connection Standard: NPT |
Inlet Size: 2.0 |
| Inlet Orientation: CENTER HORIZONTAL BACK |
Discharge Size: 2.0 |
Discharge Orientation: CENTER HORIZONTAL FRONT |
Outer Piston Materials: NO OUTER PISTON |
| Air Side Material: ALUMINUM |
Valve Material: Buna-N |
Valve Type: VALVE BALL |
Valve Seat MATERIAL: Buna-N |
| O Rings Gasket Material: Buna-N |
Hardware Material: DIAPHRAGM DEPENDENT |
Muffler Material: Aluminum |
Self Priming: YES |
| Power Source: COMPRESSED AIR |
Air Inlet Connection: 3/4″ FNPT |
Maximum Allowable Operating Pressure: 125.0 |
Max Air Pressure: 125.0 |
| Max Flow Rate: 190.0 |
Flow Rate 40 Psi: 137.0 |
Flow Rate 50 Psi: 122.0 |
Flow Rate 60 Psi: 110.0 |
| Flow Rate 70 Psi: 98.0 |
Flow Rate 80 Psi: 83.0 |
Flow Rate 90 Psi: 68.0 |
Flow Rate 100 Psi: 50.0 |
| Flow Rate 120 Psi: 0.0 |
Max Suction Lift Dry: 22.7 |
Max Operating Temperature: 180.0 |
Min Operating Temperature: 10.0 |
| Max Viscosity: 125000 |
Max Air Consumption: 110.0 |
Atex Rated: YES |
CE: YES |
| UKCA: YES |
FDA: NO |
Shipping Weight: 78 |
Country Of Origin: UNITIED STATES |
| Performance | SUCTION CURVE |
 |
 |
| To pump 363 lpm (96 gpm) against a discharge head of 2.8 bar (40 psig) requires 5.5 bar (80 psig) and 102 Nm3/h (60 scfm) air consumption. | |
