Item: 08-15700-R

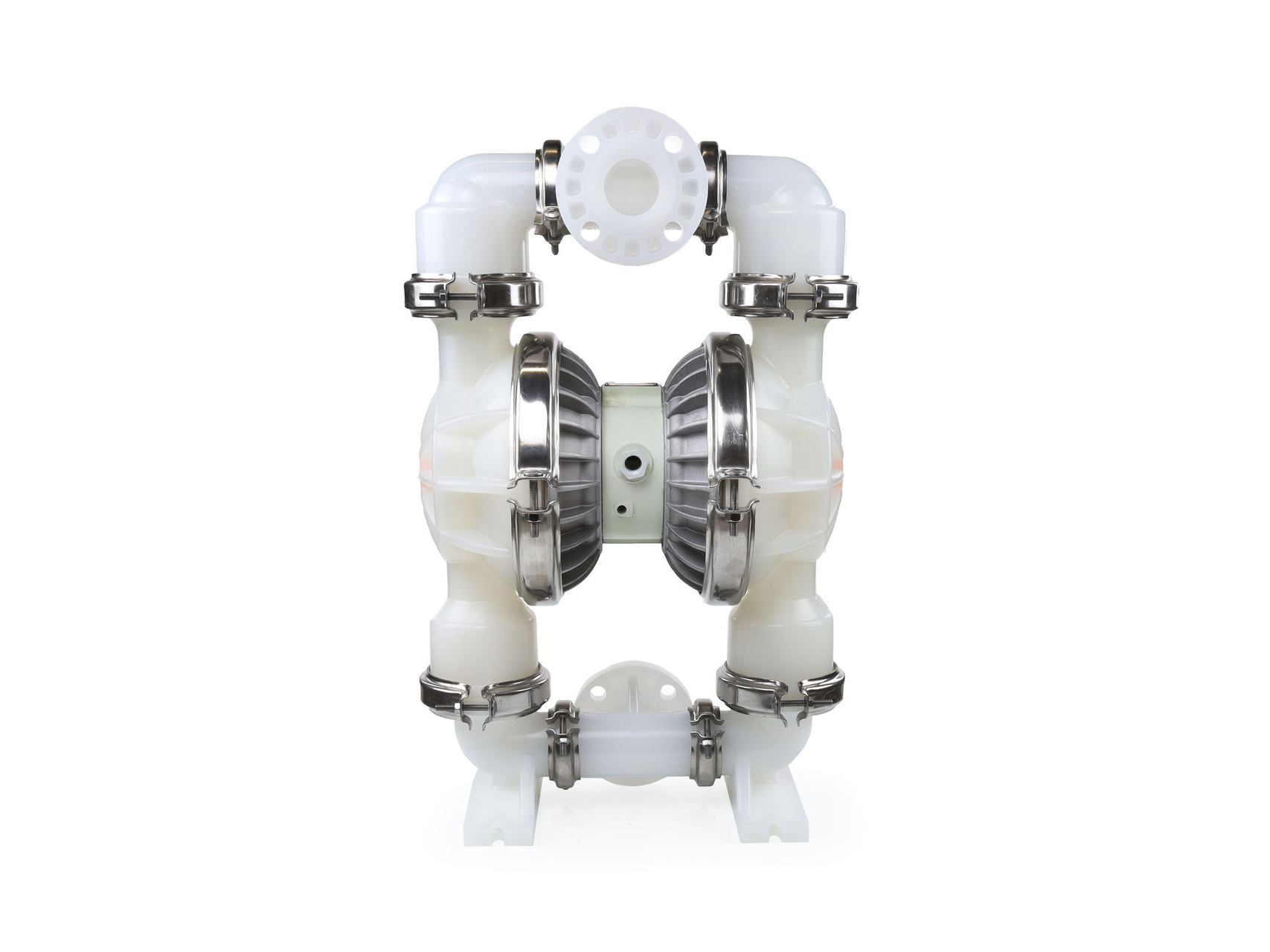

Description: P8/PZAPP/WWL/WF/PWF
|
 |
Key SpecificationsDischarge Orientation : CENTER SWIVEL |
Attributes
| Model: 2 |
Technical Construction: CLAMPED |
Wetted Path Material: POLYPROPYLENE |
Diaphragm Material: Santoprene® |
| Diaphragm Design: TPE IPD |
Diaphragm Stroke: Full-Stroke |
Connection Standard: ANSI |
Inlet Size: 2.0 |
| Inlet Orientation: CENTER SWIVEL |
Discharge Size: 2.0 |
Discharge Orientation: CENTER SWIVEL |
Outer Piston Materials: NO OUTER PISTON |
| Air Side Material: POLYPROPYLENE |
Valve Material: Santoprene® |
Valve Type: VALVE BALL |
Valve Seat MATERIAL: POLYPROPYLENE |
| O Rings Gasket Material: SANTOPRENE |
Hardware Material: STAINLESS STEEL |
Muffler Material: Plastic |
Self Priming: YES |
| Power Source: COMPRESSED AIR |
Maximum Allowable Operating Pressure: 125.0 |
Max Air Pressure: 125.0 |
Max Diameter Solids: 0.25 |
| Max Flow Rate: 218.0 |
Flow Rate 40 Psi: 154.0 |
Flow Rate 50 Psi: 143.0 |
Flow Rate 60 Psi: 130.0 |
| Flow Rate 70 Psi: 105.0 |
Flow Rate 80 Psi: 100.0 |
Flow Rate 90 Psi: 88.0 |
Flow Rate 100 Psi: 0.0 |
| Flow Rate 120 Psi: 0.0 |
Max Suction Lift Dry: 18.16666667 |
Max Operating Temperature: 175.0 |
Min Operating Temperature: 32.0 |
| Max Viscosity: 125000 |
Max Air Consumption: 200.0 |
Atex Rated: NO |
CE: YES |
| UKCA: YES |
FDA: NO |
Shipping Weight: 75 |
Country Of Origin: UNITIED STATES |

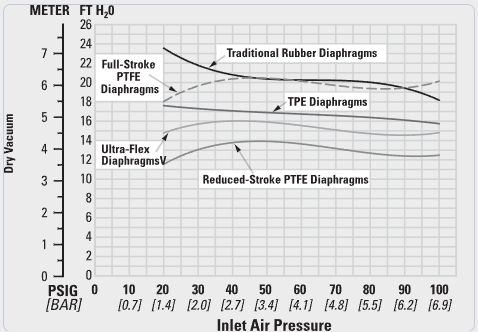

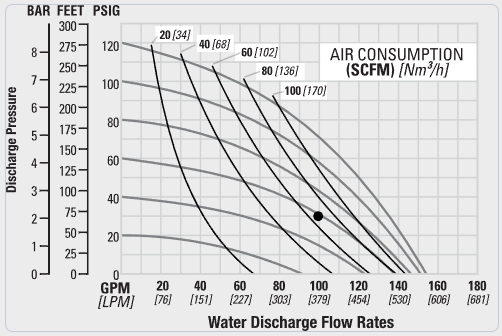

| Performance | SUCTION CURVE |
 |
 |
| To pump 371 lpm (98 gpm) against a discharge head of 2.1 bar (30 psig) requires 4.1 bar (60 psig) and 107 Nm3 /h (68 scfm) air consumption. | |
