These filter/regulators are simple to set up and deliver the exact pressure regulation required to maximize pump efficiency and performance. They are equipped with inherent moisture and particulate elimination down to 5 microns, an analog pressure gauge, a “locking” pressure regulation system, and a standard manual drain. An optional automatic drain is also available, which is suggested for prolonged usage.
Key Features:
- Wide Range of Operating Parameters – Can manage operating pressures ranging from 7 psig to 125 psig and temperatures between 40 and 140°F.
- Accurate Pressure Adjustment – The locking adjustment knob ensures precise and secure pressure regulation and facilitates indefinitely variable flow rates.
- User-friendly Polypropylene Bowl – Allows quick access to the filter element with just a 1/4-turn of the bowl.
- High Visibility Bowl Guard – Features a unique liquid level indicator that enables monitoring from up to 30 feet away and at 20 different angles.
- Integrated Pressure Gauge.
| FR-1 & FR-1A | Fits NDP-5, NDP-15, NDP-20 |

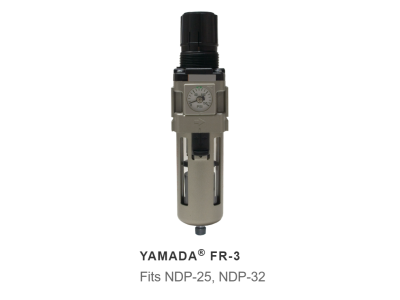

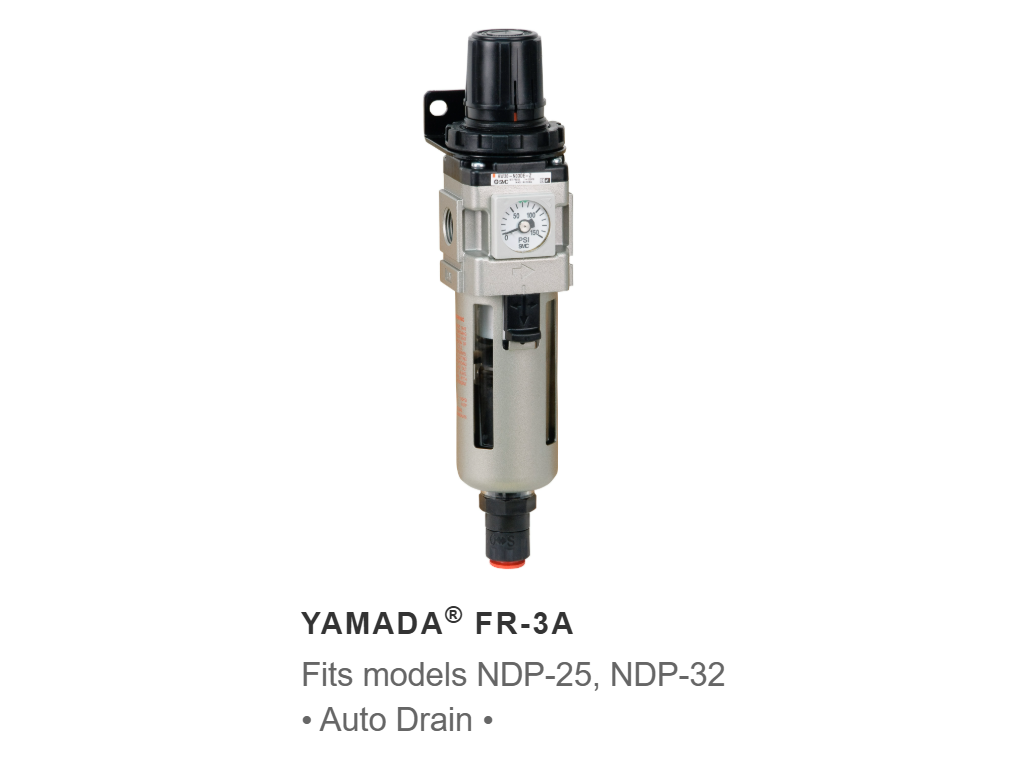

| FR-3 & FR-3A | Fits NDP-25, NDP-32 |

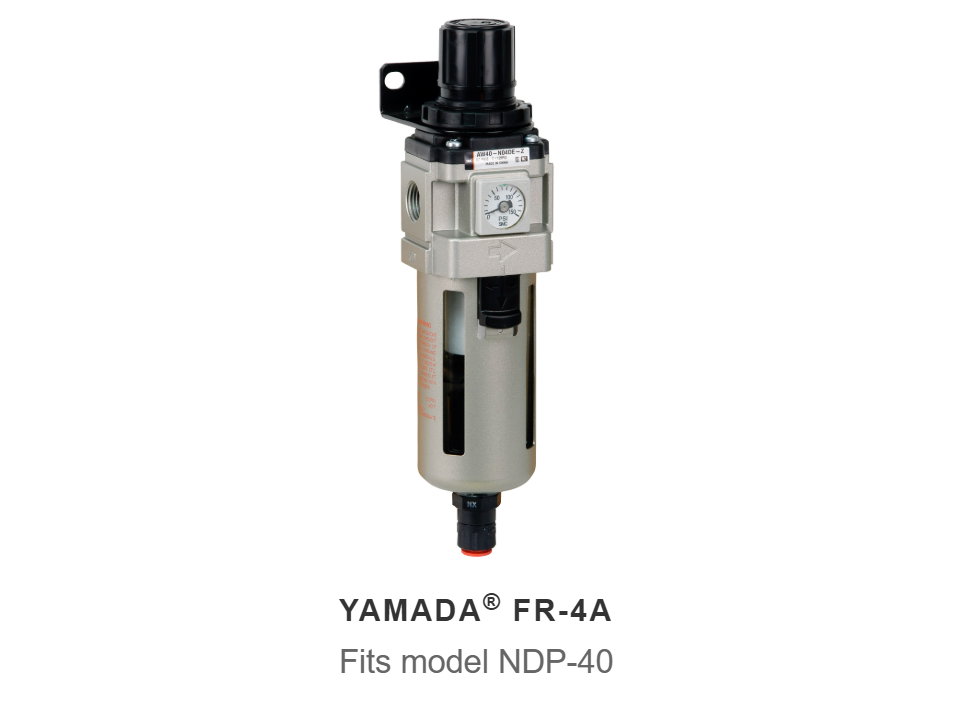

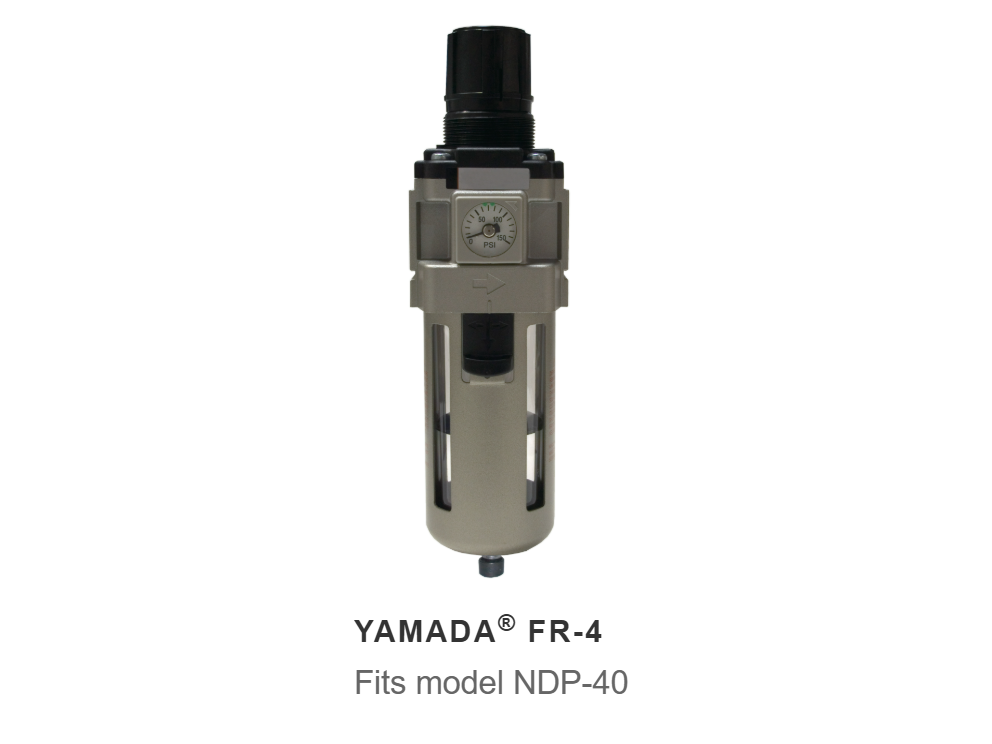

| FR-4 & FR-4A | Fits NDP-40 |

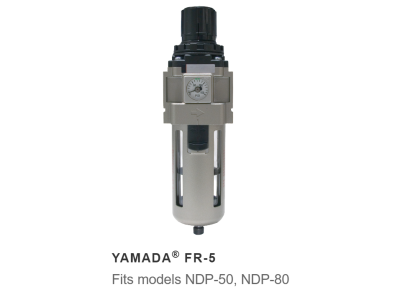

| FR-5 & FR-5A | Fits NDP-50, NDP-80 |

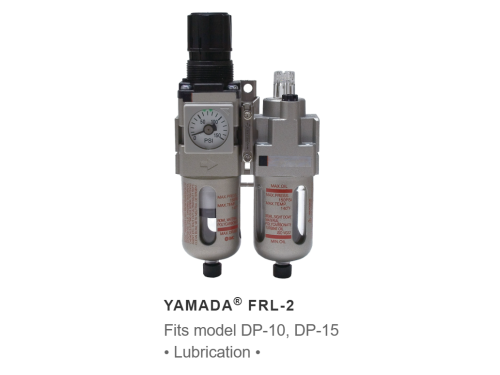

| FRL-2 | Fits DP-10, DP-15 |
| FRL-4 | Fits XDP-40 |

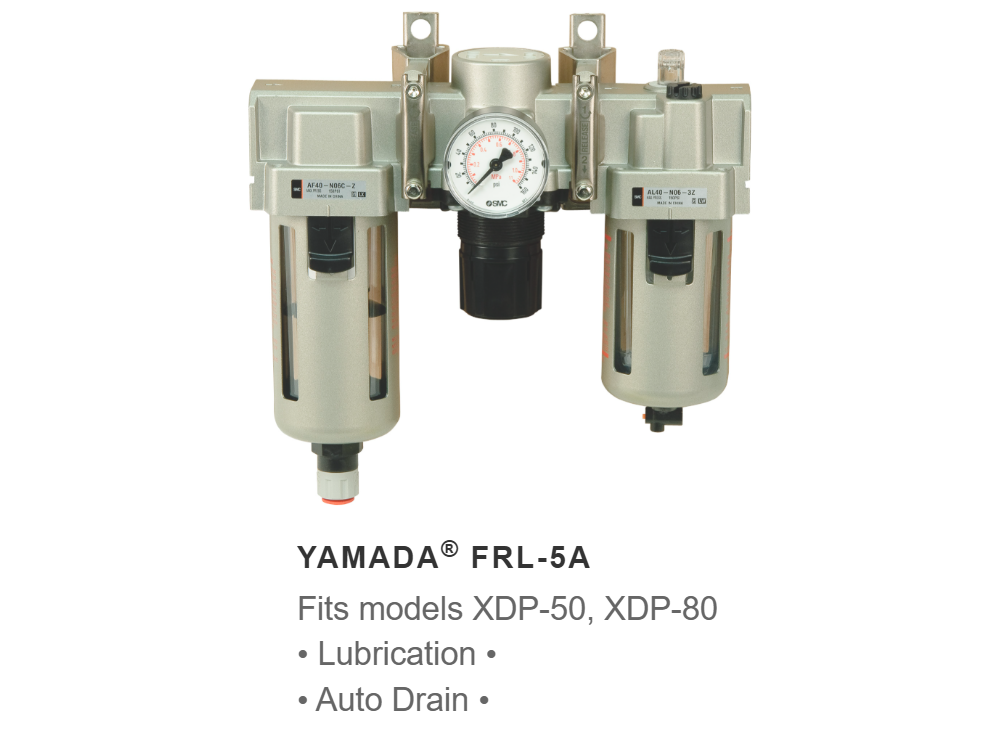

| FRL-5 | Fits XDP-50, XDP-80 |
“A” designates Auto Drain.
“L” designates lubrication, oil bottle included (not shown).
DP-10, DP-15 and XDP series pumps are the only pumps which may require lube.
Max Flow Rate is 141 SCFM. For additional options, contact here >
