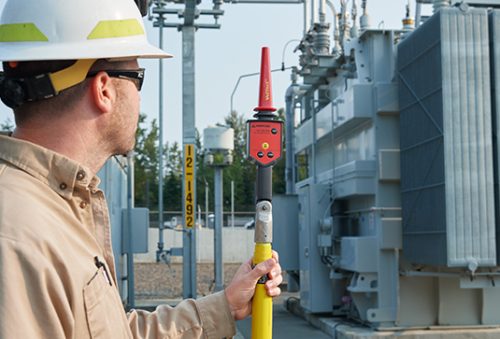

MSHA certified and intrinsically safe, the Amprobe TIC 300 PRO High Voltage Detector with VolTect™ alert is a rugged, reliable, non-contact, high voltage tester for utility, industrial, and mine safety applications up to 122kV. Select low or high voltage levels to verify the presence of voltage without contacting the energized conductor. When this high voltage electricity tester is moved within close proximity of an energized line, the intuitive VolTect™ alert warns users with bright flashing lights and loud beeps. All functionality is available through push buttons designed for easy use with PPE gloves. A universal adapter Hot Stick TIC 410A is available for voltage higher than 1500 VAC.
Operating Voltage | LOW Range: 30 to 1500 VAC HIGH Range: 1500 VAC to 122 kV AC *Use only with Amprobe optional accessory hot stick and proper safety equipment for voltages up to 122 kV AC |
Operating Temperature | 32 °F to 125 °F; < 90% RH |
Storage Temperature | 32 °F to 125 °F; battery removed |
Environment | < 2000 m, outdoor operation |
Power | 9 V alkaline battery |
Power Consumption | OFF: 340uA Low / High Detection mode: 39 mA |
Duty Cycle | Continuous |
Response Time | Instantaneous |
Frequency Response | 50/60 Hz |
