Product Details

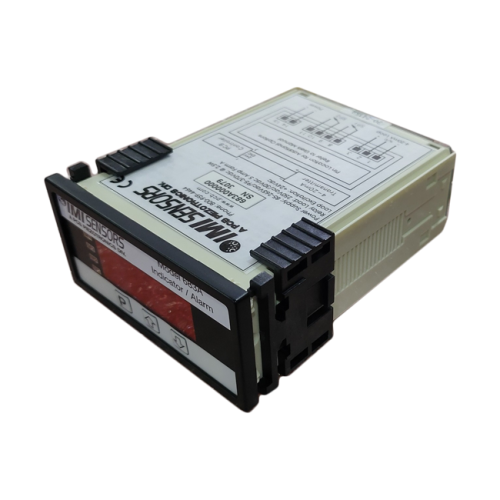

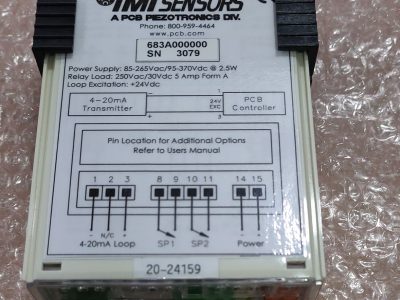

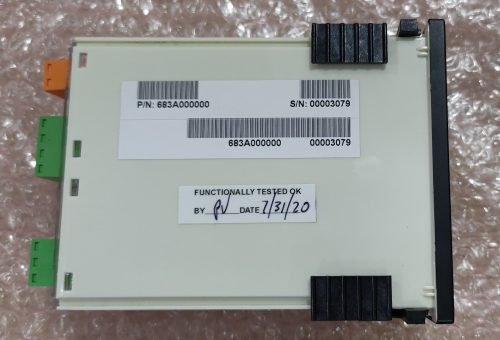

PCB Piezotronics Indicator/controller MODEL: 683A000000

SKU: Category: PCB Piezotronics

Contact us

Call us Email Facebook Instagram Messenger
ENGLISH: SI:
PERFORMANCE
Sensor Input Type(s) Loop-powered Loop-powered
Input Signal 4 to 20 mA 4 to 20 mA
Channels 1 1
Accuracy ±0.05 % FS ±0.05 % FS
Relay Type (Alert) 5A Form A 230 VAC/30 VDC 5A Form A 230 VAC/30 VDC
Relay Type (Alarm) 5A Form A 230 VAC/30 VDC 5A Form A 230 VAC/30 VDC
Delay 0 to 9999 sec 0 to 9999 sec
ENVIRONMENTAL
Temperature Coefficient of Sensitivity 56 ppm/°F 100 ppm/°C
Warm Up <2 minutes <2 minutes
Temperature Range (Operating) 32 to 140 °F 0 to 60 °C
Temperature Range (Storage) -4 to 158 °F -20 to 70 °C
Humidity Range (Non-Condensing) <95 % <95 %
ELECTRICAL
Power Required (Auto Sensing) 85-265 VAC/95-370 VDC 85-265 VAC/95-370 VDC
Current Consumption (Typical) 2.5 W 2.5 W
Current Consumption (Max) 3.5 W 3.5 W
Excitation Voltage (±1 VDC) 24 VDC 24 VDC
PHYSICAL
Size – Depth 4.61 in 117 mm
Size – Width 3.45 in 87.4 mm
Size – Height 1.61 in 40.8 mm
Housing Material Polycarbonate Polycarbonate
Weight 8.5 oz 241 gm
Din Rail Mount 1/8 in 3 mm
Electrical Connector Removable Screw Terminals Removable Screw Terminals
BEZEL 3.78 x 1.89 in 96 x 48 mm
Depth Behind BEZEL 4.61 in 117 mm
Depth Behind BEZEL (Rt. Angle Conn.) 5.08 in 129 mm
Depth Behind BEZEL (Straight Conn.) 5.40 in 137 mm
Accessories None None
