- Robust stainless steel housing for use in harsh industrial environments
- Precise background suppression
- Intuitive setting of the sensitivity via pushbutton
- Programmable light-on/dark-on mode
- LED display to check operation, switching status and function
For more information please see the document here: https://drive.google.com/file/d/19W1olNs8AOsgn9R9jTm-CcR3Z3JbkTVH/view?usp=sharing
| Product characteristics |
| Type of light |
red light |
| Housing |
threaded type |
| Application |
| Special feature |
Gold-plated contacts; Background suppression |
| Function principle |
Diffuse reflection sensor |
| Electrical data |
| Operating voltage [V] |
10…36 DC |
| Current consumption [mA] |
< 40 |
| Protection class |
II |
| Reverse polarity protection |
yes |
| Type of light |
red light |
| Wave length [nm] |
660 |
| Outputs |
| Electrical design |
PNP |
| Output function |
light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] |
2.5 |
| Permanent current rating of switching output DC [mA] |
150; (200 (…60 °C)) |
| Switching frequency DC [Hz] |
250 |
| Short-circuit protection |
yes |
| Type of short-circuit protection |
pulsed |
| Overload protection |
yes |
| Detection zone |
| Range [mm] |
30…130; (white paper 200 x 200 mm 90% remission) |
| Range adjustable |
yes |
| Max. light spot diameter [mm] |
12 |
| Light spot dimensions refer to |
at maximum range |
| Background suppression available |
yes |
| Operating conditions |
| Ambient temperature [°C] |
-20…80 |
| Protection |
IP 68; IP 69K |
| Tests / approvals |
| EMC |
| EN 60947-5-2 |
|
| EN 55011 |
class B |
|
| MTTF [years] |
521 |
| Mechanical data |
| Weight [g] |
65.3 |
| Housing |
threaded type |
| Dimensions [mm] |
M18 x 1 / L = 70.5 |
| Thread designation |
M18 x 1 |
| Materials |
stainless steel (1.4404 / 316L); PBT |
| Lens material |
|
| Displays / operating elements |
| Display |
| switching status |
1 x LED, yellow |
| operation |
1 x LED, green |
| function |
1 x LED, red |
|
| Accessories |
| Items supplied |
|
| Remarks |
| Remarks |
| operating voltage “supply class 2” according to cULus |
|
| Pack quantity |
1 pcs. |
| Electrical connection |
| Connection |
Connector: 1 x M12; coding: A; Contacts: gold-plated |

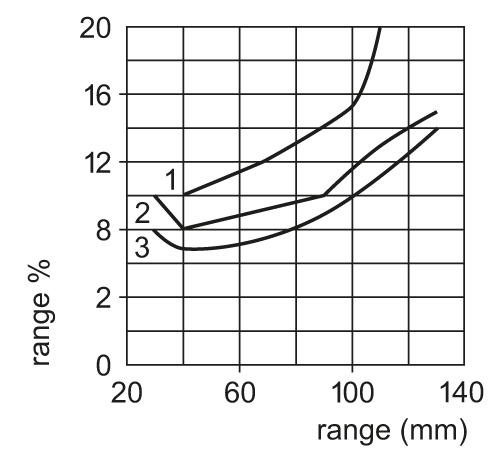

| Diagrams and graphs |
| accuracy graph |
| x: |
distance sensor/object [mm] |
| y: |
min. distance object/background [mm] |
| 1 = |
object black (6 % remission) , background (white 90 % remission) |
| 2 = |
object grey (18 % remission) , background (white 90 % remission) |
| 3 = |
object white (90 % remission) , background (white 90 % remission) |
|
Note : range % = setting in % of the range |
|
