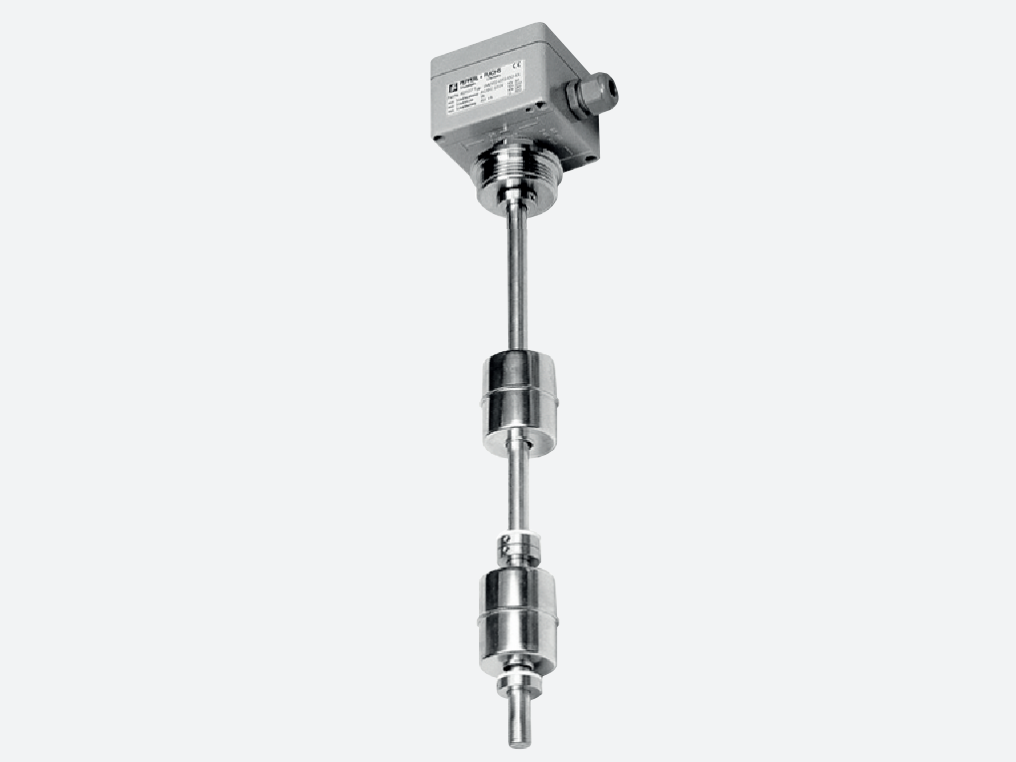

Magnetic Immersion Probe for Limit Value Detection
LML-S
- Sensor for limit value detection in liquids
- Media contacting parts of stainless steel
- Mounting without removing the float (G5 and G6)
Function
- The device is a sensor for limit value detection in liquids.
- A ring magnet integrated in the float activates the contacts inside the probe tube via its magnetic field. If the probe strays outside the range of the mechanical contact, it reverts to the output status.
- The skipping of switching points caused by abrupt level changes can be avoided using snap-on set collars on the probe tube. The same set collars are also used for latching contact operation.
Pepperl+ Fuchs Magnetic Immersion Probe for Limit Value Detection

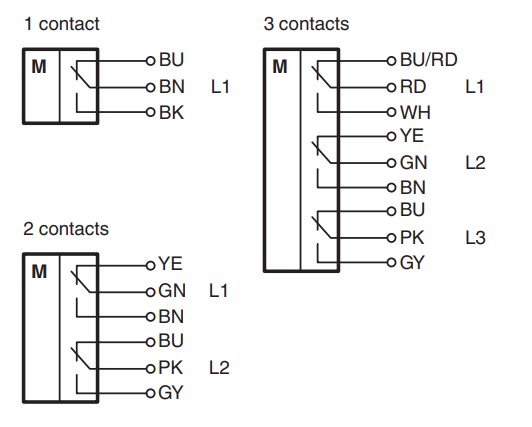

Connection
Change-over contact
 |
Technical Data
General specifications |
||

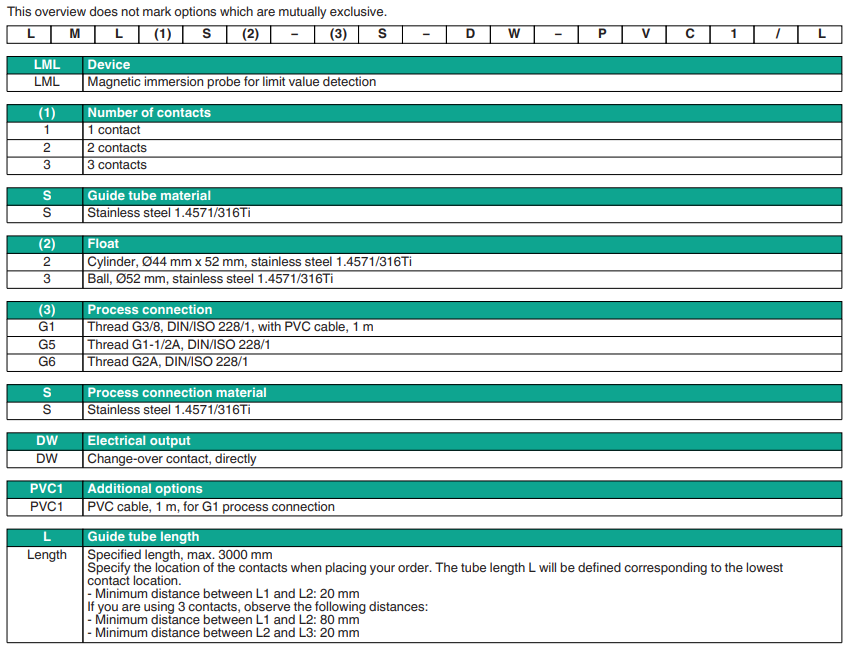

| Function principle | ring magnet as switching element in the float, reed contact, change-over contact number of contacts: – version LML1: 1 contact – version LML2: 2 contacts – version LML3: 3 contacts |
|
| Series | LML-S | |
Supply |
||
| Rated voltage | Ur | 250 V AC/DC |
| Current consumption | 1 A | |
| Power consumption | 40 VA | |
Output |
||
| Connection | This device may be used with any sequential circuit, as long as the circuit can support the electrical circuit values of the switching elements. |
|
| Directive conformity | ||
| Low voltage | ||
| Directive 2014/35/EU | EN 61010-1:2010 | |
Conformity |
||
| Degree of protection | IEC 60529:2000 | |
Operating conditions |
||
| Installation conditions | ||
| Switching point | position according to specification | |
| Process conditions | ||
| Process temperature | version LML: -30 … 150 °C (-22 … 302 °F) version LML-PVC1: -10 … 80 °C (14 … 176 °F) |
|
| Process pressure (static pressure) | ≤ 25 bar (362.6 psi) | |
| Density | version S2: ≥ 0.8 g/cm3 version S3: ≥ 0.7 g/cm3 |
|
Ambient conditions |
||
| Ambient temperature | -20 … 70 °C (-4 … 158 °F) | |
Mechanical specifications |
||
| Degree of protection | IP66 / IP68 | |
| Connection | version LML: terminal box, max. 9 terminals version LML-PVC1: connection cable 1 m (3.3 ft), 0.75 mm2 |
|
| Material | float, guide tube, process connection: stainless steel 1.4571/316Ti connection cable: PVC terminal box: aluminum die-casting |
|

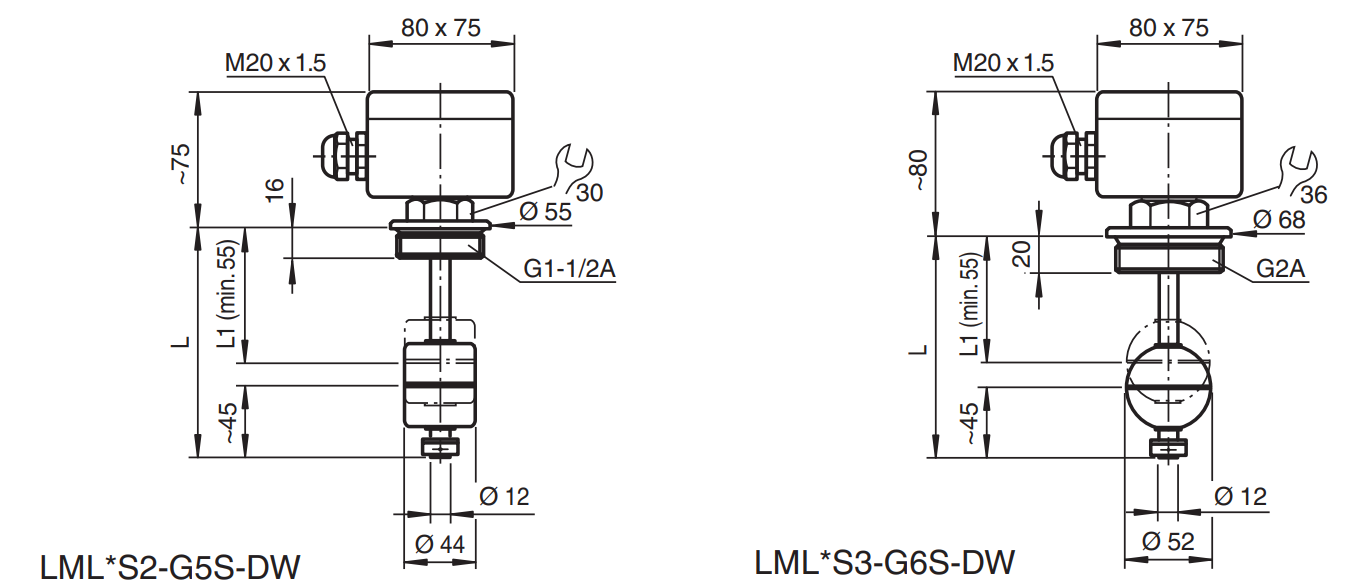

| Dimensions | float: – version S2: cylinder ∅44 mm x 52 mm – version S3: ball ∅52 mm guide tube: ∅12 mm, max. length 3000 mm terminal box: 80 x 75 x 55 mm |
|
| Process connection | thread G3/8A, G1-1/2A, G2A to DIN/ISO 228/1 | |
General information |
||
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
|
Accessories |
||
| Designation | – LML-Z11 set collar, 1.4571/316Ti – LML-FS2 float, cylinder, Ø44 mm x 52 mm, 1.4571/316Ti – LML-FS3 float, ball, Ø52 mm, 1.4571/316Ti |
