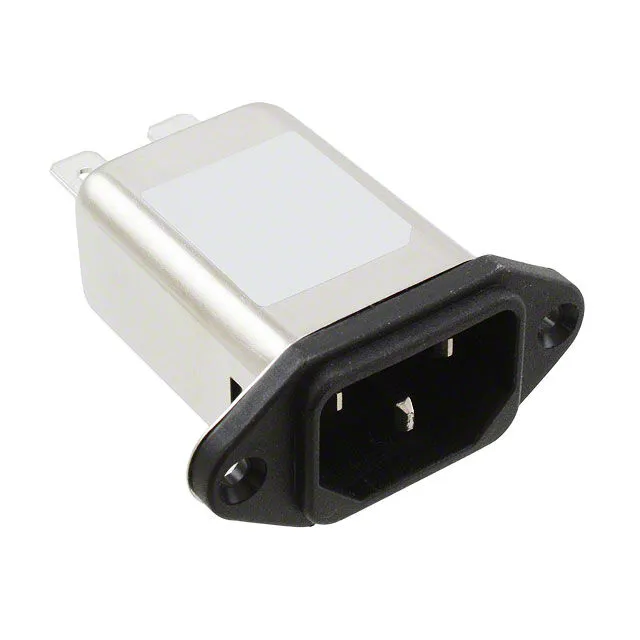

Detailed Description: Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
| Manufacturer | TE Connectivity Schaffner | Mounting Type |
Panel Mount, Flange
|
| Part Status | Active | Termination |
Quick Connect – 0.250″ (6.3mm)
|
| Connector Style | IEC 320-C14 | Features |
Bleed Resistor, Front or Rear Side Mount
|
| Connector Type |
Receptacle, Male Blades
|
Panel Cutout Dimensions | Rectangular – 28.50mm x 21.50mm |
|
Number of Positions
|
3 | Material Flammability Rating |
UL94 V-2
|
|
Filter Type
|
Filtered (EMI, RFI) – Commercial
|
Ingress Protection | IP40 |
|
Current Rating – Filter
|
12A | Approval Agency |
CQC, CSA, ENEC, UL
|
| Accomodates a Fuse | No | ||
