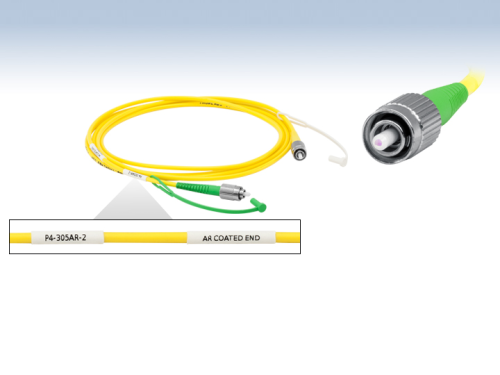

Enhance your fiber optic system with Thorlabs’ high-quality patch cables, featuring a unique design that combines AR-coated and uncoated connectors for optimal performance. These cables are ideal for applications requiring efficient coupling from fiber to free space, such as those using our Fiber Collimation Packages and FiberPorts.

Key Features:

• AR-Coated Connector: Each cable includes one AR-coated FC/PC or FC/APC connector, specifically designed to minimize reflections and maximize transmission when interfacing with free space. This coating significantly improves return loss compared to uncoated connectors.
• Uncoated Connector: The opposite end of the cable features an uncoated FC/PC or FC/APC connector, suitable for standard fiber-to-fiber connections.
• Performance Optimization: Thorlabs carefully selects AR coatings to achieve reflectivity of <1%, <0.75%, or <0.5% within designated AR coating ranges. See the AR Coating Reflectivity graphs for detailed performance data.
• Durable Construction: Each cable is built with 0.3 mm Kevlar-reinforced furcation tubing, providing excellent protection and durability.

Benefits of AR Coating:

• Improved Return Loss: AR coating reduces reflections, leading to cleaner signals and minimizing interference. For example, uncoated FC/PC connectors typically have a return loss of ~15 dB, while AR-coated FC/PC connectors can achieve ~24 dB.
• Increased Transmission: AR coating maximizes the amount of light coupled into or out of the fiber, improving overall system efficiency.

Important Note:

• The AR-coated end is optimized for free-space applications (e.g., collimation). Avoid mating AR-coated connectors to prevent increased back reflections and transmission loss.

Available Configurations (Refer to Table):
