3/4″ to 4″ fluid ports

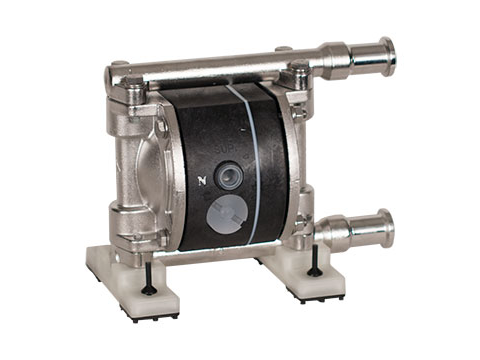

Yamada’s AODD pumps are compliant with FDA regulations and are specifically designed for use in the food, pharmaceutical, and cosmetic industries. These pumps are comprised of a series of features including 316 stainless steel wetted components with a passivated satin finish, PTFE-coated air motors, and sanitary clamp fittings. Passivating refers to the process of modifying the surface layer or coating it with a thin inert layer to protect against contamination.
These pumps are also available with FDA compliant elastomers such as Hytrel®, EPDM, and PTFE.
Key features
- Self-priming and lube-free air valve
- Ideal for shear-sensitive liquids
- Intrinsically safe and portable
- Non-mechanical seals
- Ability to run dry without sustaining damage to the pump.Top of Form
|
 |
Yamada FDA Pumps are capable of handling thick liquids.
| Port Sizes: |
Eight sizes available from 3/4″ to 4″ ports |
| Port Type: |
Tri-clamp |
| Flow Ranges: |
From 1 to 215 gallons per minute |
| Air Pressure: |
From 20 to 100 PSI |
| Sanitary Fitting Sizes: |
NDP-5 series » 3/4″ size
DP-10 series » 3/4″ size
NDP-15 series » 1″ size
NDP-20 series » 1″ size
NDP-25 series » 1-1/2″ size
NDP-40 series » 2″ size
NDP-50 series » 2-1/2″ size
NDP-80 series » 4″ size |
| Specifications: |
NDP-5, DP-10, NDP-15, NDP-20, NDP-25, NDP-40, NDP-50, NDP-80 |
| Additional Options: |
PTFE-coated air motor (models DP-10, NDP-40, NDP-50, and NDP-80) or Electroless Nickel Plated air motor |
| Finish: |
100RA standard mechanical polish.
100RA mechanical polish only available for NDP-40/50/80.
Option: 10RA & 20RA interior mechanical polish available on some models. Consult Yamada. |
| Notes: |
FDA Series pumps utilize oversized sanitary ports |
| Optional: |
FDA Drum Pumps. See specs on Drum Pumps page |
| Certificate: |
Certificate of Compliance Form |
- Winery
- Brewery
- Pharmaceutical
- Bulk Transfer
- Food Ingredients / Packaging
- Batching
- Filter Press, Utility
- Tanker/Railcar Unloading
- Product Transfer
- Cosmetics
- Personal Hygiene
