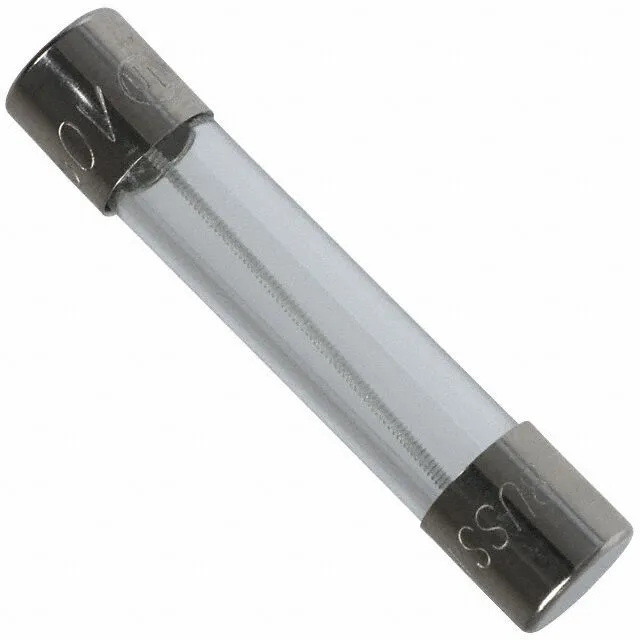

Detailed Description: 3 A 250 V Fuse Cartridge, Glass Requires Holder 3AB, 3AG, 1/4″ x 1-1/4″
| Manufacturer | Eaton – Electronics Division | Response Time | Slow Blow |
| Part Status | Active | Package / Case | 3AB, 3AG, 1/4″ x 1-1/4″ |
| Mounting Type | Requires Holder | Breaking Capacity @ Rated Voltage | 100A |
| Fuse Type | Cartridge, Glass | Melting I²t | 67.5 |
| Current Rating (Amps) | 3A | Approval Agency | CE, CSA, UL |
| Voltage Rating – AC | 250V | Size / Dimension | 0.250″ Dia x 1.250″ L (6.35mm x 31.75mm) |
| DC Cold Resistance | 0.057 Ohms |
