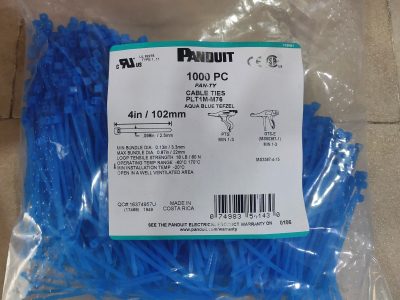

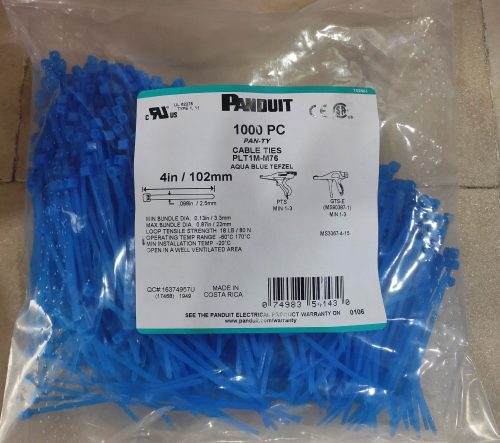

Panduit PLT1M-M76 Tefzel Locking Cable Tie PLT1M-M76

SKU: Category: Industrial Consumable

Contact us

Call us Email Facebook Instagram Messenger

Panduit PLT1M-M76 Tefzel locking cable ties are designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. Low smoke density and excellent flammability rating of UL 94V-0. Miniature cross section, 4.0” (102mm) length. For indoor or outdoor use, made of Tefzel, are a distinctive aqua blue in color and come in packages of 1000.

Product Type Cable Ties Minimum Installation Temperature (°F) -4
Color Aqua Minimum Loop Tensile Strength (N) 80
Environment Indoor/Outdoor Minimum Loop Tensile Strength (lb) 18
Sub Brand Pan-Ty® Minimum Operating Temperature (°C) -60
For Use With GTS-E, GS2B-E, PTS, PPTS, STS2 Minimum Operating Temperature (°F) -76
Material Tefzel Overall Length (In.) 4
Resistance Properties Chemical, Radiation, UV and High Heat Resistant Overall Length (mm) 102
Maximum Bundle Diameter (In.) 0.87 Body Width (In.) 0.098
Maximum Bundle Diameter (mm) 22 Body Width (mm) 2.5
Maximum Installation Temperature (°F) 32 Body Thickness (In.) 0.043
Maximum Operating Temperature (°C) 170 Body Thickness (mm) 1.1
Maximum Operating Temperature (°F) 338 Standards Met UL Recognized (File #E56854, UL 62275 Compliant (Type 1, 11), RoHS Compliant
Minimum Bundle Diameter (In.) 0.13 Military Cross Reference Number MS3367-4-15
Minimum Bundle Diameter (mm) 3.3 Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
Minimum Installation Temperature (°C) -20
