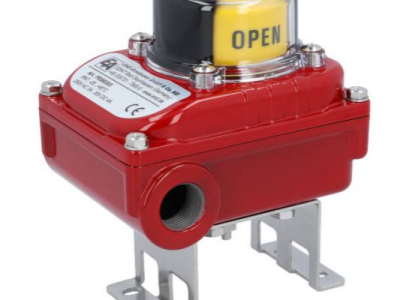

PE Position limit switches(EA End-Armaturen brand) is designed with 2 electric/mechanic micro-switch build in a aluminum detector housing with crystal-clear cap, o-ring sealed. Use for 2-way or 3-way valves(L- or T- configuration). Optical position indicator for 2-way valves.
For mounting on all actuators with mounting hole spacing according to NAMUR and steam heights 30mm.
|Housing:||Aluminum, epoxy coated|
8 nos of terminal strips.
- 6 for switches.
- 2 for solenoid valve power
conductor cross section: max. 1,5mm².
INDICATION AND SWITHING RANGE
0°…90° rotation angle, adjustable.
One changeover switch per end position(NO/NC)
|Switching current:||3A, 250V AC|
|4A, 30V DC|
PE position limit switches have many configs according to type off valves required as below.
Please refer to datasheet for further details.
For any request about EA(End-Armaturen) products please contact us.
